Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting

Looking for durable, high temperature resistant conveyor belts? Our factory in China specializes in producing custom PTFE coated fabric belting with antistatic properties.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Color
Brown
Base Fabric and Weave
Fiberglass/Satin Weave
Temperature Resistance
-101 ºC to 315 ºC
UV Resistance
1000 Hrs; No Change in Tensile
Thickness
0.016" ± 10%
Tensile Strength
410 Lbs/Inch
Mullen Burst
650 Psi
Flame Resistance
Char Length 1 Inch Max
Craft
Impregnating
Chemical Reaction
Acid and Alkali Resistance
MOQ
100 M2
Standard
Food Grade
Friction Coefficient
0.05
Sample
Free Sample and Shipping
Glass Fiber Grade
E-Glass
Transport Package
Carton
Specification
Silicone impregnated fiberglass fabric
Trademark
Heaterk
Origin
Jiangsu, China
HS Code
5903101000
Production Capacity
10000sqm/Momth

Product Description

Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting


Material PTFE Coating + Fiberglass Fabric Method
Temperature Resistance -150 °F to 600 °F (-101 °C to 315 °C) ASTM-D-6413
Weight 16.5 oz/sy ± 10% (561 g/m² ± 10%) ASTM-D-3776
Thickness 0.016" ± 10%(0.381 mm ± 10%) ASTM-D-1777
Tensile Strength Warp- 410 lbs/inch 71.44 kg/cm
Fill- 350 lbs/inch 53.58 kg/cm
ASTM-D-5034


Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting

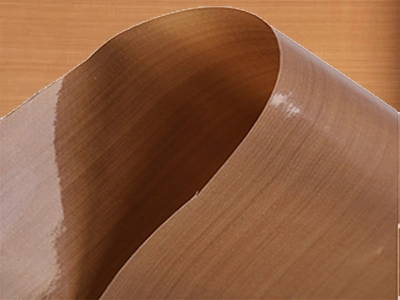

PTFE Fabric


PTFE Fiberglass Fabric with standard formulation and percentage of PTFE-fiberglass coating content, provides a cost-effective product for use in a variety of industries, maintaining good heat transfer, release property & flexibility.

PTFE Fabric is made of imported glass fiber as raw material,consist of a woven fiberglass and are coated with a PTFE resin.



PTFE Fabric combines the excellent release, and heat resistance of PTFE with the strength and dimensionally stability of fiberglass, making it ideal for a variety of harsh industrial applications.



They are very high temperature resistant, have superior electrical properties, have an outstanding release surfaces and excellent chemical resistance.



PTFE coated fabric is dimensionally stable at temperatures from -100° to 500°F (-73° to 260°C), non-toxic, odorless, tasteless, FDA (21 CFR 177.1550) compliant, and can be used in food processing and packaging.



Another prominent feature of PTFE coated fabrics is that the coefficient of friction is extremely low (the test result under ASTM-G-154 is 0.05-0.15), the weather resistance is 1000 hrs, and no change in tensile PTFE itself has excellent oleophobic and hydrophobic properties. Making PTFE coated fiberglass very suitable for use in the field of food processing, including but not limited to conveyor belts, non-stick pans, etc.



The PTFE coating also helps prevent liquid contamination of the base fabric and can be used to manufacture bespoke sleeves and connectors for harsh chemical environments.






Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting

PTFE Fabric Features

  • Dimensionally stable at temperatures from -150° to 600°F (-101 ºC to 315 °C)High release from sticky materials 'Non- stick' smooth surface
  • Non-toxic, odorless, tasteless, FDA compliant (21 CFR 177.1550)
  • Chemically inert
  • Easy to clean and maintain
  • Non-stick surface

PTFE Fabric   Application Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting

  • Release sheets for cooking and baking
  • Gaskets & diaphragms
  • Laminate separator sheets
  • Specialized heat-sealing

When choosing PTFE Fabric, in addition to the performance of the product, the choice of PTFE coated fiberglass fabric manufacturers is also critical.

We have been engaged in the R&D, production, and manufacturing of fiberglass fabrics for more than 20 years-standard requirements and willing to accept any new challenges. Please leave a message to us, and we will provide more professional and cost-effective services.

PTFE Fabric Certification

Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting
Heaterk's products are strictly by ASTM test standards and have obtained UL-181, UL94, BS-476, CE, and other authoritative certifications. We strictly abide by the ISO9001 quality management system, and we are confident and capable according to your requirements. Produce identical products.


PTFE Fabric Packing

Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting



About Heaterk Fire Insulation Material

Custom High Temperature Antistatic Woven Calender Conveyor Belt China PTFE Coated Fabric Belting

Since 2003, HEATERK has been providing solutions for all fire protection and thermal insulation areas.
We have been developing solutions to the exact requirements of our civilian and customers, offering a range of high-performance, high-standard composite materials.




HEATERK provides comprehensive end-to-end services for all temperature control areas, from finished product requirements to fully customized industry solutions.

An unparalleled product range supports the ability of our highly trained sales and service personnel to provide innovative, economical, and reliable solutions. This has resulted in a strong reputation and wide acceptance within all industry sectors.

We can handle any business, no matter its complexity, with a global service that includes field service, installation, and all other aspects of maintenance.

Our products are complemented by a wide range of locally manufactured and globally sourced raw material processing custom solutions.



FAQ

1, Are you a manufacturing or trading company?
We are a manufacturer; our factory is located in Wuxi, Jiangsu Province.

2, Can I get samples from you?
Of course, you can. If the samples you need are in stock, you can get them for free; you only need to pay for the express cost.

3, What's the term of payment?
Amount < US$2000, 100% paid in advance by PayPal or T/T;
Amount >= US$2000, 30% born in advance, 70% balance before shipment by T/T.

4, Can you produce OEM products?
Yes, we can produce products from drawings or samples.

5, What's your MOQ?
If we have the products in stock, the quantity by your requirement.

6, What is the key differences and advantage that you have?

A.Effective communication, high efficiency, and saving time.
B.Fast delivery time and rapid speed for sample arrangement.
C.High quality, factory direct selling can offer very competitive price.
