Insulation Silicone Coated Glass Fabrics

Insulation Silicone Coated Glass Fabrics for high temperature applications. As a factory, we ensure quality and competitive pricing. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YS-5025
Classification
Organic Insulating Material
Color
Grey
High Voltage Resistance
Red, Brown, Black, White, Blue Color
Chemical Resistance
High Temperature Resistance
Transport Package
Carton
Specification
0.25mm
Trademark
YOUNGSUN
Origin
China
HS Code
59100000
Production Capacity
10000sqm/Week

Product Description

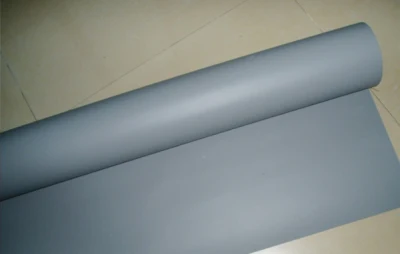

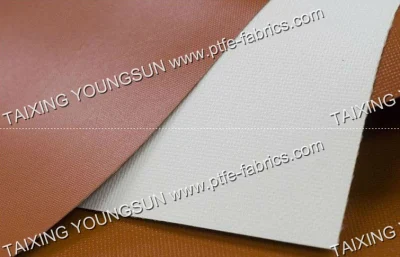

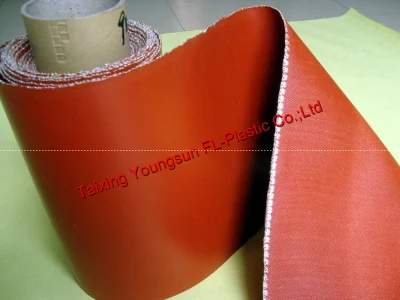

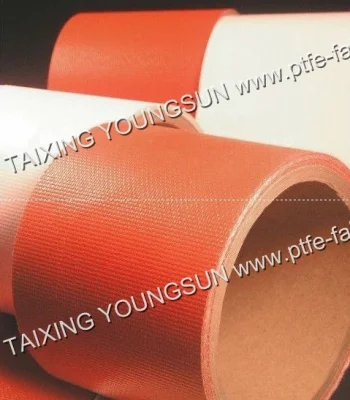

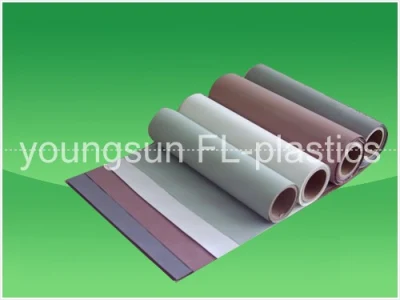

Description of Silicone Coated Glass Fabrics:

Silicone Coated Glass Fabrics has characteristics quite similar to those of PTFE-coated fabrics: Good temperature resistance (+230° C), good chemical and electric resistance. But they are more flexible and very non-stick. On the other hand, silicone has a non-slip surface, unlike PTFE. These fabrics are available coated on one or both sides, in red\white\grey colours.

Some Properties of Silicone Coated Glass Fabrics:
· Hi - temperature resistant (up to 300 ° C)
· Excellent release properties
· Superior abrasion resistance
· Good chemical resistance
· Superior dielectric properties
· Superior abrasion resistance and flex
· Excellent electrical insulation
Insulation Silicone Coated Glass Fabrics Insulation Silicone Coated Glass Fabrics
Applications of Silicone Coated Glass Fabrics:
1. Shrink tunnels
2. Foam manufacturing
3. Electrical insulation tapes
4. Conveyor belts for industrial processes
5. Safety curtains
6. Release and separator sheets
7. Asketing, and for packaging, food, printing, chemical and rubber industries

Youngsun also manufactures silicone glass fabrics with one side pressure sensitive adhesive. Youngsun pressure sensitive silicone tapes can be used on mechanical, electrical and industrial applications.
model              Thickness(mm)   Thickness(mil)   Breaking Strength(n/50mm)   Bursting Strength   Combustible     width
  YS-5015   0.15   6   1500/1200   2.0   ≤ 25% 0-1500mm
  YS-5025   0.25   10   1800/1500   2.1   ≤ 25%   0_ 1500mm
  YS-5040   0.40   16   2000/1600   2.2   ≤ 25%   0_ 1500mm
  YS-5050   0.50   20   2200/1800   2.3   ≤ 25%   0_ 3000mm
  YS-5060   0.60   24   2400/2200   2.4   ≤ 25%   0_ 3000mm
  YS-5070   0.70   28   2500/2300   2.4   ≤ 25%   0_ 3000mm
  YS-5080   0.80   31   2600/2400   2.5   ≤ 25%   0_ 3000mm
  YS-5090   0.90   35   2800/2600   2.5   ≤ 25%   0_ 3000mm
  YS-5100   1.00   40   3000/2800   2.6   ≤ 25%   0_ 3000mm
  YS-5120   1.20   47   3400/3000   2.5   ≤ 25%   0_ 3000mm
  YS-5150   1.50   59   3700/3300   2.8   ≤ 25%   0_ 3000mm
  YS-5200   2.00   79   4200/3800   3.5   ≤ 25%   0_ 3000mm
  YS-5300   3.00   118   6500/6200   5.0   ≤ 25%   0_ 1000mm
Insulation Silicone Coated Glass Fabrics Insulation Silicone Coated Glass Fabrics Insulation Silicone Coated Glass Fabrics Insulation Silicone Coated Glass Fabrics
