PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE

PTFE Coated Fiberglass Cloth - Non-Stick, High Temperature Resistant Fabric. High quality PTFE Fiberglass Fabric Manufacturer. Factory direct pricing.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • <span cke-mic-navigation-content="" style="border-radius:3px;padding:0 10px;display:inline-block;line-height:36px;">Product Description</span>
  • Detailed Photos
  • Product Parameters
  • Company Profile
  • Applications
  • Properties
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
NFC-PTFE
Thickness
0.08-1mm
Width
1.25m - 3m or Customized
Nominal Weight
600-2800GSM
Service Temperature
260 Degree
Color
White, Beige, Brown, Black
Processing Service
Bending, Decoiling, Moulding, Welding, Punching, C
Properties1
Non-Stick Surface, High Dielectric Strength
Properties2
Superior Non-Stick Surface, Easy to Clean
Properties3
Resistance to UV, IR and Hf, Non-Toxic
Brand Name
New Fire
Transport Package
Bag+Carton+Pallet
Specification
Customized
Trademark
NewFire
Origin
Jiangsu, China
HS Code
7019590000
Production Capacity
20, 000m/Day

Product Description

Product Description

PTFE coated glass fiber fabrics are made from best imported fiberglass as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coated with fine PTFE resin then make it into various of ptfe high temperature resistance cloth in different thickness and widths.It is a new high performance and multipurpose composite material.
It is widely used in paper, food, environmental protection, printing & dyeing, apparels, chemicals, glass, pharmaceuticals, electronics, insulation, construction ( membrane ceiling structure), grinding wheel, mechanical etc.



Surface Treatment PTFE coated
Color White, Beige, Brown, Black
Thickness 0.08-1mm
Coating Content 20-200gsm
Temperature Resistance -70°C~260ºC

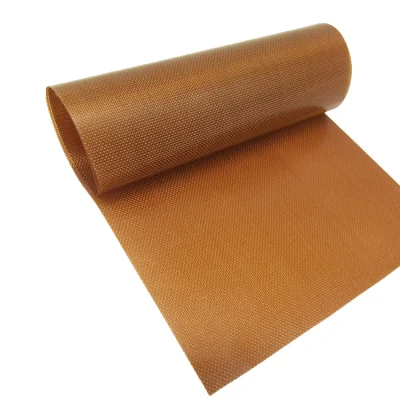

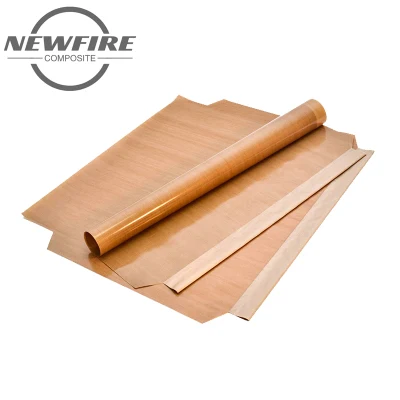

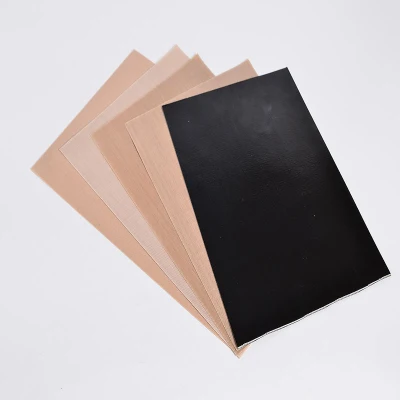

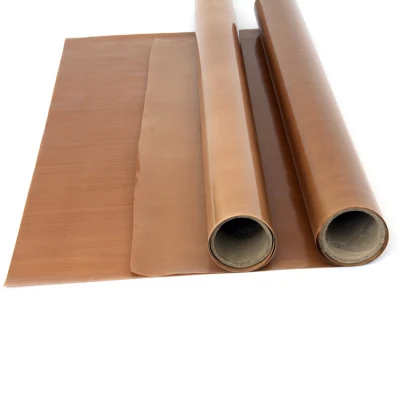

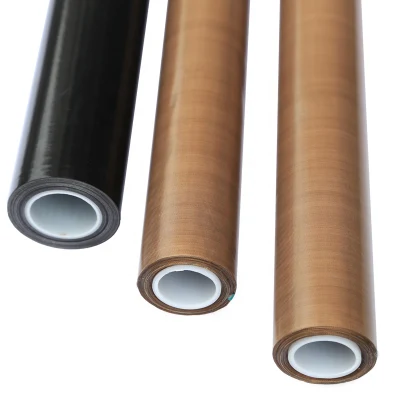

Detailed Photos


PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE

PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE
PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE
PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE
PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE
PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE
  PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE
Product Parameters

Item No. Nominal Thickness Maximum Width Nominal Weight Tensile strength Color
MM MM GSM oz / yd² N/5CM
TF008AJ 0.08 1250 150 4.4 550/450 Brown
TF008BJ 0.08 1250 150 4.4 550/450 Black
TF008W 0.08 1250 140 4.1 550/450 White
TF013AJ 0.13 1500mm 250 7.4 1100/1000 Brown
TF013BJ 0.13 1250mm 250 7.4 1100/1000 Black
TF013J 0.13 1250mm 250 7.4 1100/1000 White
TF013TR 0.13 1250mm 250 7.4 1100/1000 Brown
TF015AJ 0.15 1250mm 300 8.8 1200/1100 White
TF018K 0.18 1250mm 380 11.2 1800/1700 Brown
TF025AJ 0.23 1250mm 500 14.7 2100/1800 Brown
TF025W 0.23 3000mm 500 14.7 2100/1800 White
TF025BJ 0.25 3000mm 500.00 14.7 2100/1800 Black
TF030AJ 0.3 3000mm 560 16.5 2800/2400 White
TF030AK 0.3 3000mm 560 16.5 2800/2400 Brown
TF035AJ 0.35 3000mm 640 18.9 2600/2300 Brown
TF035BJ 0.35 2600mm 640 18.9 2600/2300 Black
TF036AJ 0.36 2600mm 650.0 19.2 2600/2300 White
TF036AK 0.36 2600mm 650.0 19.2 2600/2300 Brown
TF040BJ 0.4 3000mm 720 21.2 3000/2500 Black
TF050AK 0.5 3000mm 750 22.1 3600/3000 Yellow
TF055AJ 0.55 3000mm 840 24.8 4400/4000 White
TF065AJ 0.65 3000mm 1050 31 5000/4800 Brown
TF080AJ 0.8 3000mm 1200 35.4 5000/4800 White
TF090AJ 0.9 3000mm 1550 45.7 6000/5000 Brown
TF090BJ 0.9 3000mm 1600 47.2 6000/5000 Black
Company Profile
We specialized in Manufacturing and exporting high temperature fiberglass fabrics, coated fabrics and customizable fabric-related products such as fire & Welding blankets, insulation blankets jackets covers, fire pit mat, welding habitat etc.
Our company is located in Jiangsu, China, where has a strong tradition of fiberglass textile making combined with an experienced workforce, very close to main ports of eastern China.
High quality, strong durability products at competitive price, quick response, high efficient production and fast delivery are what we can offer you.

PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE



Applications


PTFE fabric could be used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners. used as non stick liners, intermediate. used as various conveyor belts, fusing belts, sealing belts or anywhere need resisting high temperature, non stick, chemical resistance etc. used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant etc.


PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE



Properties

1:Outstanding temperature resistance (from -170ºC to +260ºC)

2: Excellent chemical resistance

3:Superior non-stick surface, easy to clean

4:High dielectric strength

5:Dimensional stability

6:Resistance to UV, IR and HF

7:Non-toxic


Packaging & Shipping
PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE
PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE

PTFE Coated Fiberglass Cloth, Non-Stick Cloth, High Temperature Resistant Fabric High Quality PTFE Fiberglass Fabric Manufacturer PTFE

FAQ

1. Q: How about the sample charge?
A: Recently sample: free of charge, but freight will be collected Customized sample: need sample charge, but we will refund if we fixed official orders later.
2. Q: How about sample time?
A: For existing samples, it takes 1-2 days. For Customized samples, it takes 7-10days.
3. Q: How long is the production lead time?
A: It takes 15-30 days for MOQ.
4. Q: How much is the freight charge?
A: It base on the order qty and also shipping way! Shipping way is up to you, and we can help to show the cost from ourside for your reference.And you can choose the cheapest way for shipping!
5.  Q:Are you trading company or manufacturer ?
A: We are factory.
