Product Description

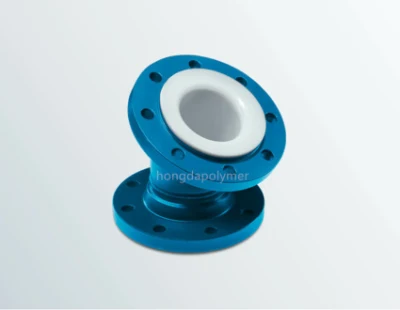

PTFE Lined Steel Pipe
PTFE Lined Pipe Can Resist the Corrosion of All Strong Acids, StrongOxidizers,Reducing Agents and Various Organic Solvents (except MoltenMetal, Chlorine Trifluoride and Elemental Fluorine), and Can Be Used NormallyUnder the Harsh Conditions of 80-220C with Negative Pressure.
PTFE is the Material of Choice for Equipment Lining in the Design of Corrosion Resistant Vessels for Corrosion-resistant Lining of Various Types of Containers,Pipe Fittings, Pipelines,Valves, Pumps Have Been Widely Used in Petroleum,Chemical, Metallurgical, Thermoelectric, Environmental Protection Industries.
| Property | Norm | Value |
| Density(g/cm³) | ISO1183 | 1.8~2.5 |
| Tensile Strength at Break(Mpa) | ISO527 | 18~30 |
| Modulus of Elasticity(Gpa) | ISO527 | 0.35~0.5 |
| Elongation at break(%) | ISO527 | 150~350 |
| Hardness Shore(Shore D) | Durometer | 50~65 |
| Temperature Range(°C) | / | -196~260 |
| Coefficient of Linear Thermal Expansion(10-4/°C) | ISO11359 | 1.0 |
Our pipes are lined, totally strainless, with paste-extruded PTFE and fully automatically tested. Depending on the nominal pipe size, we produce pipes up to a total length of 6 metres.
.High Temperature & Pressure Resistant.Corrosion / Chemical Resistant
. Superior Resistant to Permeation.Great Long Service Life
Materials:
- carbon steel
- stainless steel
Lining materials
- PTFE (virgin or conductive)
- PP (up to nominal pipe size DN 300)
Flanges according to EN 1092-1:
- fix-loose
- fix-fix
- loose-loose
Other pressure levels:
- PN 16
- PN 25
- PN 40
Special features:
- earthing stud/lug
- vent hole extension
- flange stopper
Optional extras:
- final painting
- non-destructive testing
